Bundle kit includes:
- 2x 7" Inch BRG LED Driving Lights, built using 5W Osram LEDs with a 1 lux output at 702m/2,300ft!
- 1x 40" Inch LED Light Bar to give you that extra beam spread
- 2x plug-and-play wiring harness to help you get connected quickly
Outback Travel Australia
"We judged the BRG trio combination’s value for money among the best we’ve evaluated in many years’ testing."
Allan Whiting

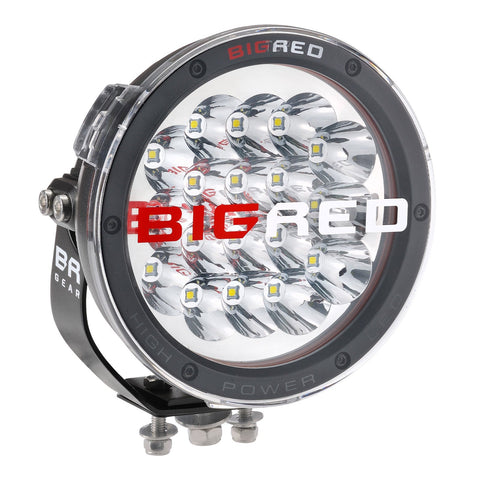

7" Inch LED driving light
Features
- High output 5W Osram LEDs produce a crisp, white light that we shape using precisely formed and aligned reflectors. This ensures an even distribution of light and perfectly formed spot beam for distance down the road.
- 5700°K colour temperature LED’s blend the perfect balance of white light while retaining the best possible definition and Colour Rendering Index (CRI).
- Our heavy duty stainless steel brackets are suitable for the rigours of off-road, 4WD tracks and have been finished in a durable black powder coat with white BR GEAR logos.
- Each lamp includes our innovative rubber dampening system to help isolate the housing from the bracket and reduce vibration on the electronics.
- We use a 3mm thick virtually unbreakable polycarbonate lens with hard coating for increased scratch resistance and protection from exposure to UV light.
- Our lamps are also tested and complied to ECE R10 for Electro Magnetic Compatibility (EMC), meaning you should not have any problems interfering with sensitive equipment.
- Each lamp also includes a clear see though polycarbonate cover for protection from stone spray and debris.
- Fully sealed and tested to IP68 for dust and water ingress protection, meaning they are waterproof for up to 3m of submersion. Perfectly suited for river crossings.
40" Inch LED Light Bar
Features
- Black stealth slimline design.
- High output 45W Osram LEDs produce a crisp, white light.
- Combination beam reflector for distance and spread of light.
- Tough aluminium housing and polycarbonate lens.
- Multi-voltage input suitable for both 12 and 24V vehicles.
- Low profile side mounting brackets.
- 5700°K colour temperature LED’s blend the perfect balance of white light while retaining the best possible definition and Colour Rendering Index (CRI).
- Tested and complied to ECE R10 for Electro Magnetic Compatibility (EMC), meaning you should not have any interference with sensitive equipment.
- Fully sealed and tested to IP67 for dust and water ingress protection, meaning they are waterproof for up to 3m of submersion. Perfectly suited for river crossings.
Technical Specifications
| Specifications | BR9022 |
|---|---|
| Wattage | 90W |
| Input Voltage | 12/24V |
| Current Draw 12V | 6A |
| LEDs (Osram) | 18 x 5W |
| Colour Temperature | 5700°K |
| EMC | ECE R10 |
| IP Rating | IP68 |
| Raw Lumens | 9000 |
| Effective Lumens | 6087 |
| 1 Lux Distance (two lamps) | 702m |
| Warranty | 3 Years |
| Specifications | BR9142 |
|---|---|
| Beam Type | Combo |
| Wattage | 90W |
| Input Voltage | 12/24V |
| Current Draw 12V | 8A |
| LEDs (Osram) | 40 |
| Colour Temperature | 5700°K |
| Housing | Aluminium |
| Bracket and Hardware | Stainless Steel |
| Lens | Polycarbonate |
| Protection | Reverse Polarity Protection |
| EMC | ECE R10 |
| IP Rating | IP67 |
| Raw Lumens | 9000 |
| Effective Lumens | 8227 |
| 1 Lux Distance | 656m |
| Warranty | 3 Years |
| Specifications | BR9095 |
|---|---|
| Input Voltage | 12/24V |
| Current Rating | 10A per lamp / light bar (max) |
| Relay | 12V 40 Amp |
| Switch | 12V Rocker with Red LED |
| Connectors | Waterproof DT x 2 |
| High Beam Adaptor | HB3 and H4 |
| Fuse | 30A ATS Blade Fuse |
| Warranty | 3 Years |
What you get
BRG 7" Inch LED Driving Lights
- BR9022 7" Inch BRG LED Driving Light x2
- Big Red Gear Clear Cover
- Stainless Steel Bolts, Nuts and Washers
- Rubber Mounting Pad
- Distribution Plate
- 2 Position DT lead
- Product Instructions
40" Inch LED Light Bar (Single Row)
- BR9142 40" Inch LED Light Bar - Combo Beam x1
- Low Profile Side Mounting Brackets
- Stainless Steel Bolts, Nuts and Washers
- Product Instructions
Plug and Play Wiring Harness
- Plug and Play wiring harness x2
- HB3 and H4 high beam adaptor
- 12V 40A relay
- 12V rocker switch
- Product instructions
